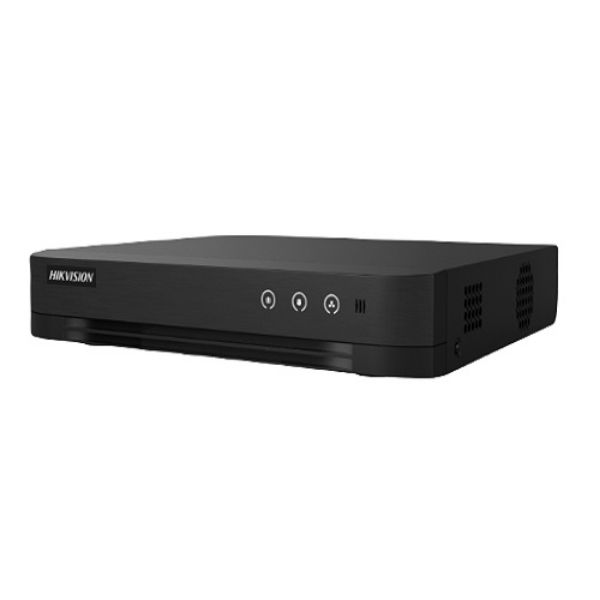

DVR 8 CANALES HD 1080p Lite 1U H.265 DVR
Características:
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video input
- Audio via coaxial cable
- Up to 10-ch IP camera input (up to 5 MP)
- Up to 1080p Lite 15 fps encoding capability
- Max. 1200 m for 720p HDTVI signal
Recording:
- Compresión De Vídeo H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Resolución De Codificación
* For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
* For 720p stream access: 720p/WD1/4CIF/VGA/CIF
* For SD stream access: WD1/4CIF/VGA/CIF
- Frame Rate
Main stream:
* For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF 15 fps
* For 720p stream access: 720p/WD1/4CIF/VGA/CIF 15 fps
* For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
- Sub-stream:
* For 1080p and 720p stream access CIF/QVGA 15 fps
* For SD stream access: CIF/QVGA 25 fps (P)/30 fps (N)
- Vídeo Bitrate 32 Kbps to 4 Mbps
- Stream Type Video, Video y Audio
- Compresión De Audio G.711u
- Audio Bitrate 64 Kbps
General:
- Fuente De Alimentación 12 VDC, 1.5 A
- Consumo < 17 W (without HDD)
- Temperatura De Trabajo - 10 ºC to 55 ºC (14 ºF to +31 ºF)
- Condiciones De Humedad 10% to 90%
- Dimensión (W × D × H) 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) < 1 kg (without HDD, 2.2 lb.)
