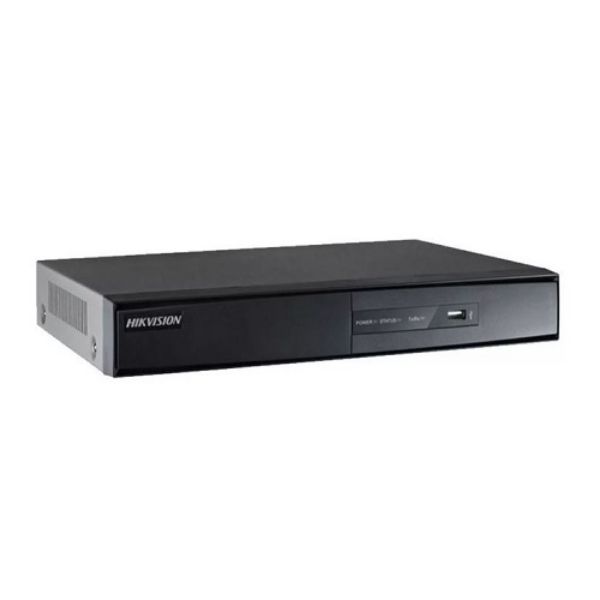

DVR HIKVISION 4 CANALES SEGURIDAD 7204HGHI-m1 HD 1080P LITE
Grabación:
- Compresión De VídeoH.264+/H.264
- Encoding ResolutionWhen 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF,When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
- Frame RateMain stream: ,When 1080p Lite mode not enabled:,For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled:,1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,2CIF@6fps; CIF/QVGA/QCIF@ 25fps (P)/30fps (N),
- Vídeo Bitrate32 Kbps to 4 Mbps
- Dual StreamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bit Rate64 Kbps
Audio y Video:
- Entrada De Video IP1-ch (up to 5-ch) Up to 960p resolution Support H.264+/H.264 IP cameras
- Analog Video Input4-ch BNC interface (1.0 Vp-p, 75 O), supporting coaxitron connection
- Turbo HD Input1080p25, 1080p30, 720p25, 720p30
- AHD Input1080p25, 1080p30, 720p25, 720p30
- HDCVI Input1080p25, 1080p30, 720p25, 720p30
- CVBS InputSupport
- Entrada De Audio1-ch, RCA (2.0 Vp-p, 1 KO)
- Salida De Audio1-ch, RCA (Linear, 1 KO)
- Audio BidireccionalReuse the first audio input
- Reproducción Síncrona4-ch
- VGA/HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Red:
- Conexiones Remotas32
- Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnPT, HTTPS
- Interfaz De Red1, RJ45 10M/100M self-adaptive Ethernet interface
Interface auxiliar:
- SATA1 SATA interface
- CapacidadUp to 6 TB capacity for each disk
- Alarm In/OutN/A
- Interfaz USBRear panel: 2 × USB 2.0
General:
- Fuente De Alimentación12 VDC
- Temperatura De Trabajo-10 °C to 55 °C (14 °F to 131 °F)
- Humedad De Trabajo10% to 90%
- Weights (Without HDD)= 1 kg (2.2 lb)
- Consumption(Without HDD)= 8 W
- Dimensiones (W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
